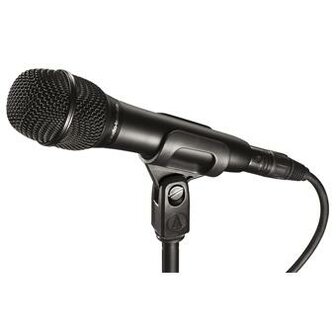

Audio Technica AT2010

The AT2010 is designed to bring the studio-quality articulation and intelligibility of Audio-Technica’s renowned 20 Series to the stage, for crystal-clear vocal performances. Featuring the same 16 mm low-mass diaphragm found in the critically acclaimed AT2020 side-address studio condenser, the AT2010 excels wherever articulate vocals are needed: in houses of worship, for solo performances, jazz vocalists, singer/songwriters, and more.





• ELEMENT: Fixed-charge back plate permanently polarized condenser
• POLAR PATTERN: Cardioid
• FREQUENCY RESPONSE: 40-20,000 Hz
• OPEN CIRCUIT SENSITIVITY: –48 dB (3.9 mV) re 1V at 1 Pa
• IMPEDANCE: 100 ohms
• MAXIMUM INPUT SOUND LEVEL: 136 dB SPL, 1 kHz at 1% T.H.D.
• DYNAMIC RANGE (typical): 113 dB, 1 kHz at Max SPL
• SIGNAL-TO-NOISE RATIO: 71 dB, 1 kHz at 1 Pa
• PHANTOM POWER REQUIREMENTS: 48V DC, 2 mA typical
• WEIGHT: 233 g (8.2 oz)
• DIMENSIONS: 179.1 mm (7.05") long, 50.8 mm (2.00") maximum body diameter
• OUTPUT CONNECTOR: Integral 3-pin XLRM-type
• ACCESSORIES FURNISHED: AT8470 Quiet-Flex stand clamp for 5/8"-27 threaded stands, 5/8"-27 to 3/8"-16 threaded adapter, soft protective pouch
• AUDIO-TECHNICA CASE STYLE: T7
