Hayman DDM-30 Drum Monitor



The Hayman DDM-30 is a compact personal drum monitor designed for electronic drum kits, keyboards, and other digital instruments. Delivering 30W RMS power through a 6.5" woofer and 2" tweeter, it provides a full, balanced sound that keeps up in practice rooms, rehearsals, and small gigs. Equipped with dual independent inputs for drums and music playback, a 3-band EQ, Bluetooth connectivity, and headphone monitoring, the DDM-30 offers flexibility and control in a portable, lightweight design.



Features


• compact 30w personal drum monitor with 6.5" woofer and 2" tweeter

• dual independent inputs for electronic drums, keyboards, or backing tracks

• 3-band eq with ±15db boost/cut on bass, middle, and treble

• bluetooth 4.0 streaming for wireless audio playback

• dedicated aux input for mp3/cd players

• separate volume controls for drum and music channels

• headphone output for silent practice

• lightweight, portable design ideal for rehearsals and small gigs



Specifications


Body
cabinet type: compact personal monitor
amplifier
dimensions: 402 × 367 × 370 mm (l × w × h)
weight: 6.7 kg (net), 8 kg (gross)

speaker configuration: 6.5" woofer + 2" tweeter


Electronics
power output: 30w rms

power consumption: 35w

eq: 3-band eq (±15db)

bass: ±15db @ 60hz

middle: ±15db @ 1.5khz

treble: ±15db @ 10khz
bluetooth: bluetooth v4.0 stereo
input
aux input: 3.5mm jack for mp3/cd players

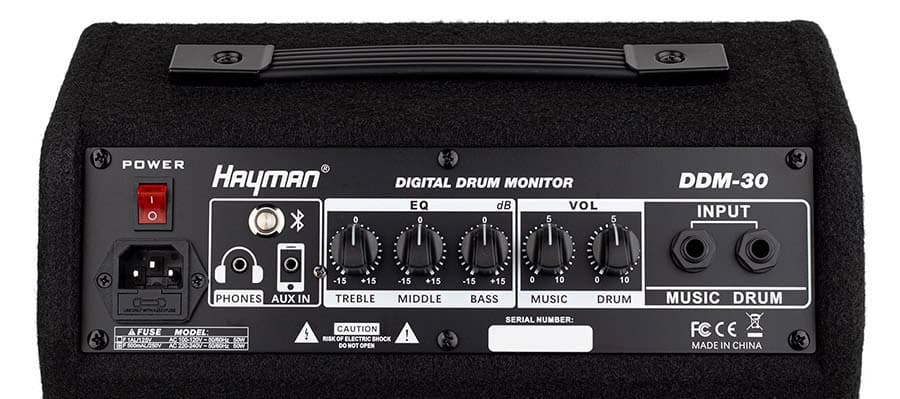

Inputs & Outputs
drum input: 33kO, sensitivity -27db

music input: 33kO, sensitivity -25db
aux in: +10db

headphones: 3.5mm stereo jack, speaker mute when connected

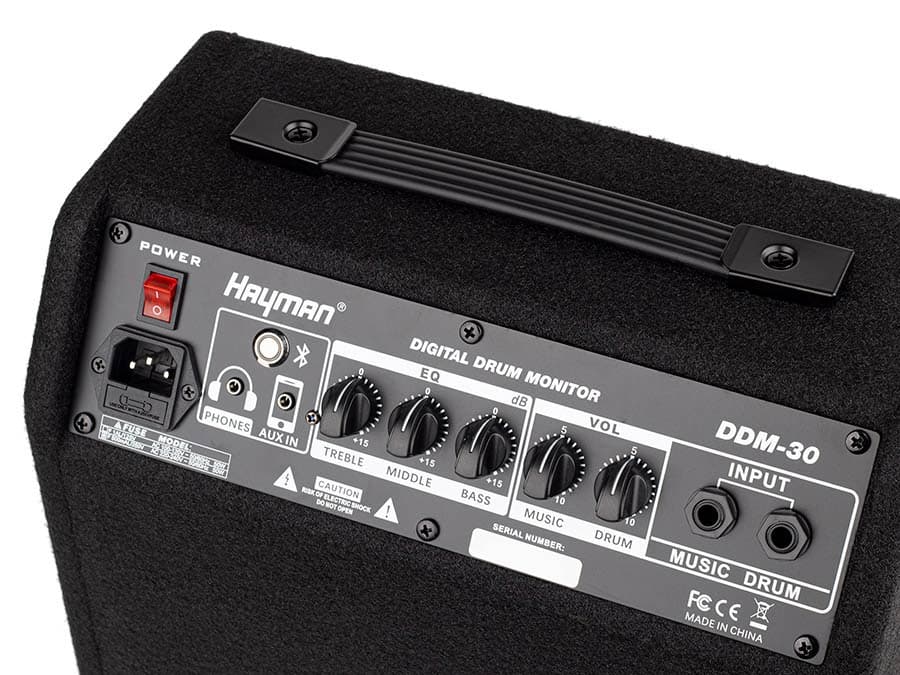

Controls
drum volume: independent level control

music volume: independent level control

eq controls: bass / middle / treble

power switch: rear panel
