MZ928 digital drum module

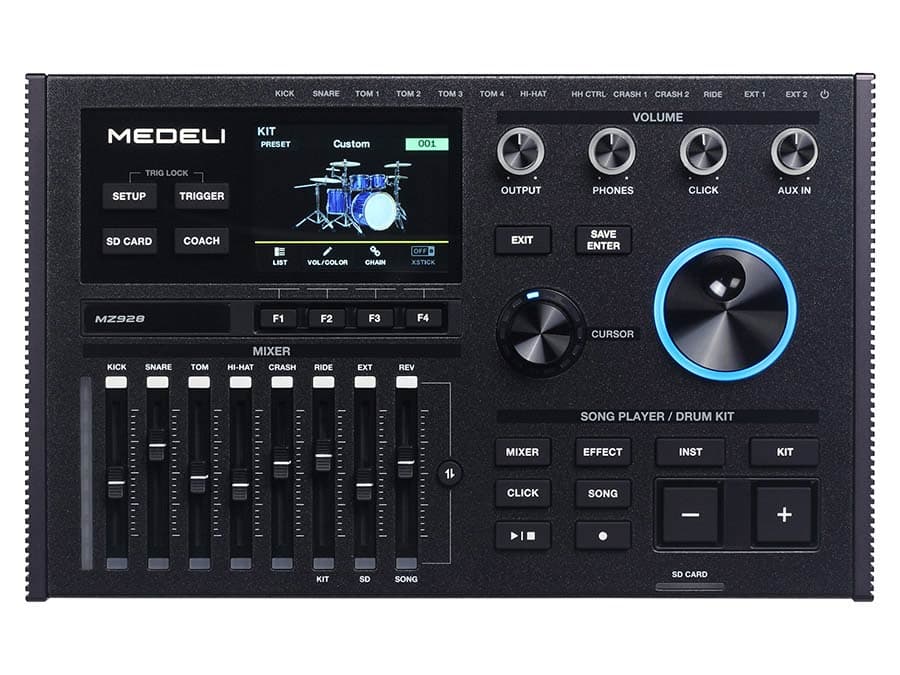

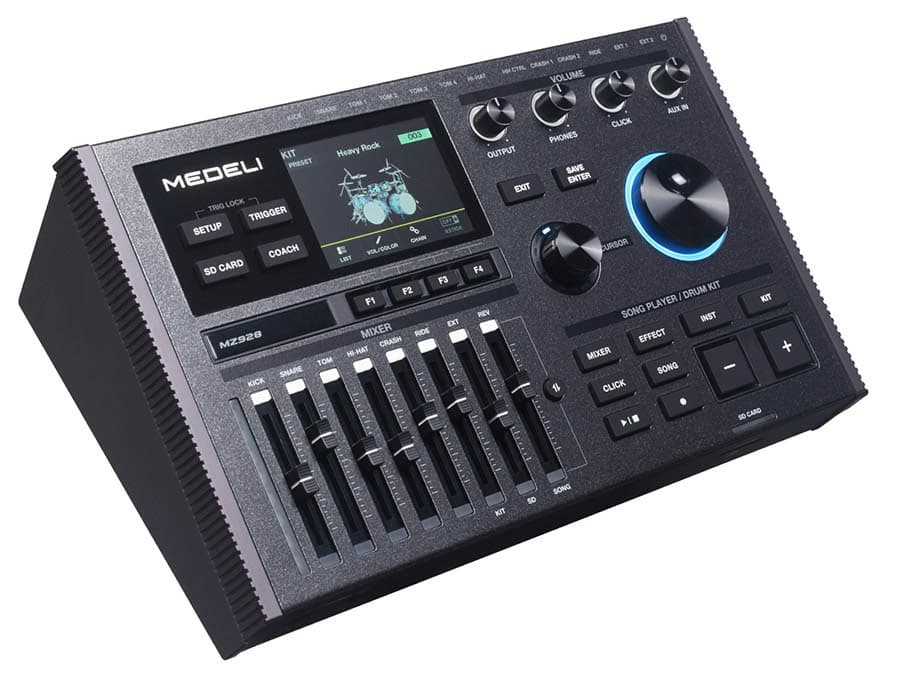

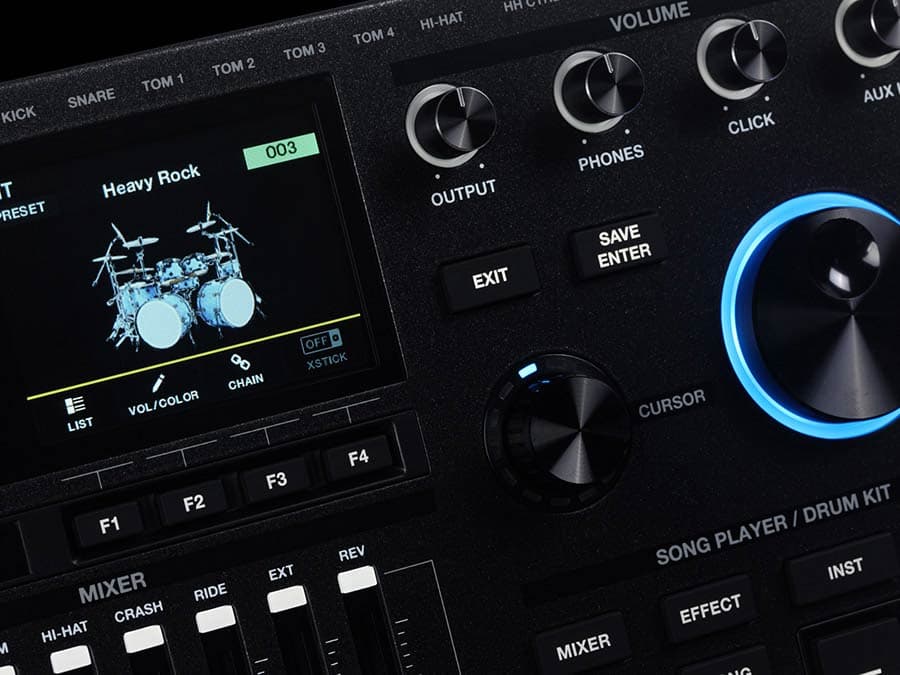

A large, color icon-based, LCD screen with dedicated knobs, buttons and volume sliders make navigation intuitive and easy. The MZ928 provides all the necessary features you need without all the ones you don’t so you can spend more time playing, not programming.

906 powerful, dynamic and expressive sounds, 800,000 combinations of sound layering and sample import covers any music style and allows endless sonic possibilities for your own signature sounds.

Extensive sound shaping tools include EQ and compression per kit and per pad, reverbs and digital effects to finish off your sound.

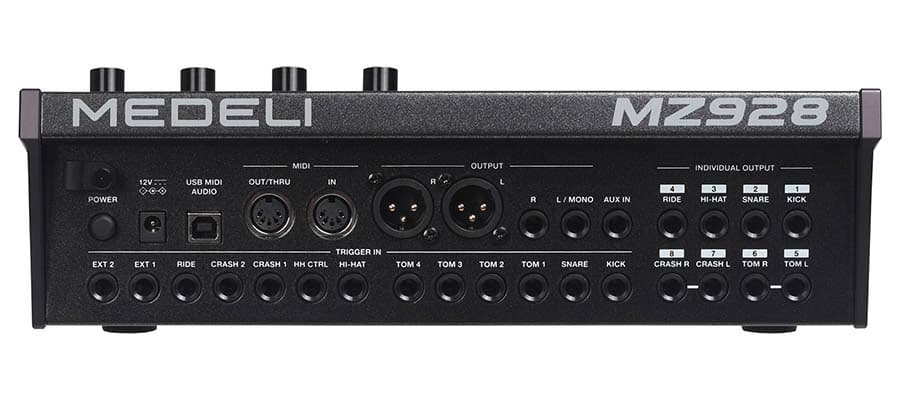

Professional connections include 13 trigger inputs, stereo plus 8 direct audio outputs, XLR outputs, USB Midi/Audio, MIDI In/Out and Aux Input to handle any recording or live application.

!! This product does not have the power supply included !!
The Medeli MAD12/2000 is a suitable power supply. TMA Art code 41169.

specifications

display	3.5" (320 x 240) color tft lcd
max polyphony	256
drum kit	55 + 45 user
sound / voice	906 + user sample (128mb max.)
song	120 presets (100 midi + 20 audio) + 2 users
effect	kit effect (reverb, eq, compressor, ifx) trigger effect (eq, compressor)
record	midi • audio
audio playback	wav • mp3
coach	quiet count • beat check • change up
metronome	click voice • volume • time signature • interval select
tempo	30-280
volume control	4 x knobs • 8 x sliders
external memory	sd card (64gb max.)
trigger para	gain • threshold • h/r response • cross stick level curve • crosstalk • retrig cancel • splash sensitivity • hh close point
bluetooth	midi & audio
usb	1 x usb-b (midi)
midi	midi in / out
headphone jack	1 x 1/4" • 1 x 1/8"
aux-in jack	1 x 1/8"
output jack	2 x 1/4" mono • 2 x xlr • 8 x direct out
power	dc12v
