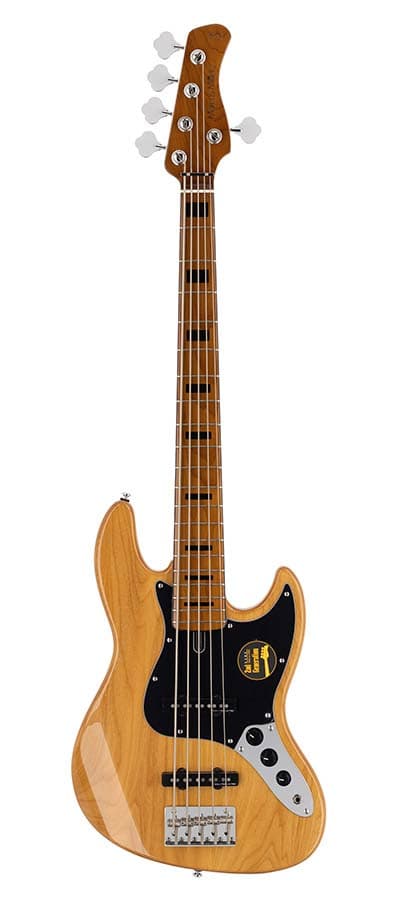

A PASSIVE BASS FOR VINTAGE ENTHUSIASTS
A passive jazz bass jampacked with vintage features from sound to aesthetics. The V5 will be truly enjoyed by players who want to go all-vintage with a plus factor on the comfortable neck, at a great price point.

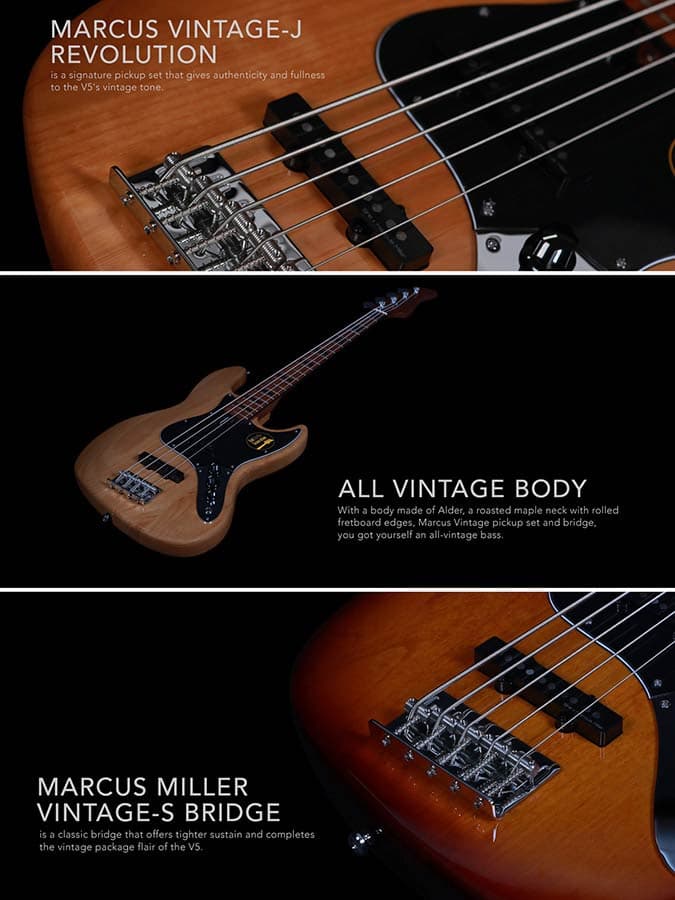

ALL-VINTAGE BODY
With a body made of Alder, a roasted MAPLE neck with rolled fretboard edges, Marcus Vintage pickup set and bridge, you got yourself an all-vintage bass.

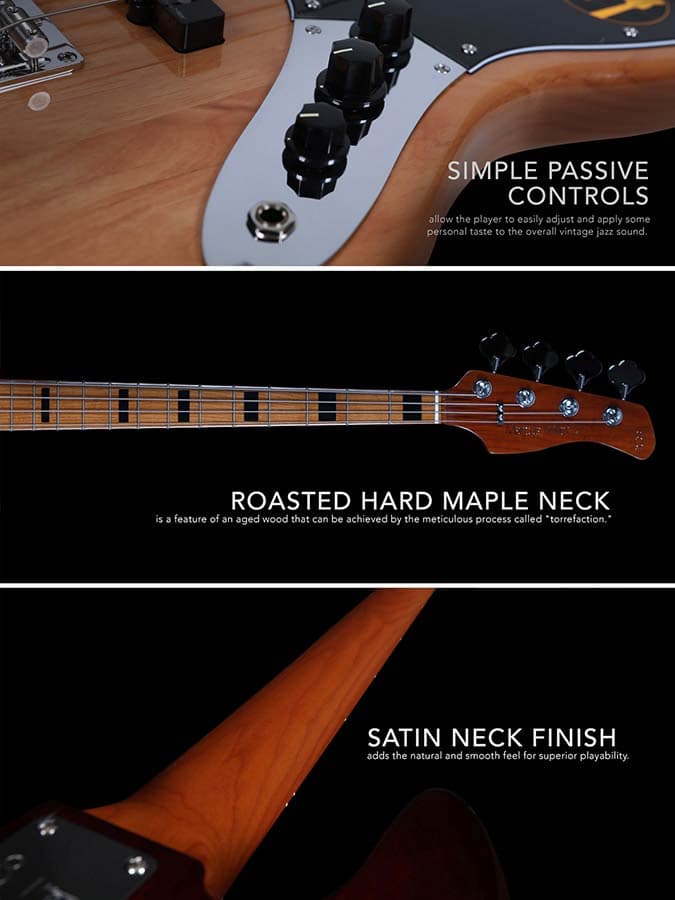

ROASTED HARD MAPLE NECK
A feature of an aged wood that can be achieved by the meticulous process called "torrefaction."

SIMPLE PASSIVE CONTROLS
Allow the player to easily adjust and apply some personal taste to the overall vintage jazz sound.

Specifications:

Specifications

BODY
body material	north american alder
body shape	new Marcus Miller jazz type
body color	nt (natural) ts (tobacco sunburst) vwh (vintage white) cgm (champagne gold metallic) car (candy apple red) tp (tide pool) bk (black)
NECK
neck material	roasted hard maple
neck shape	C-shape
scale	34"
neck joint	4 bolt steel square plate

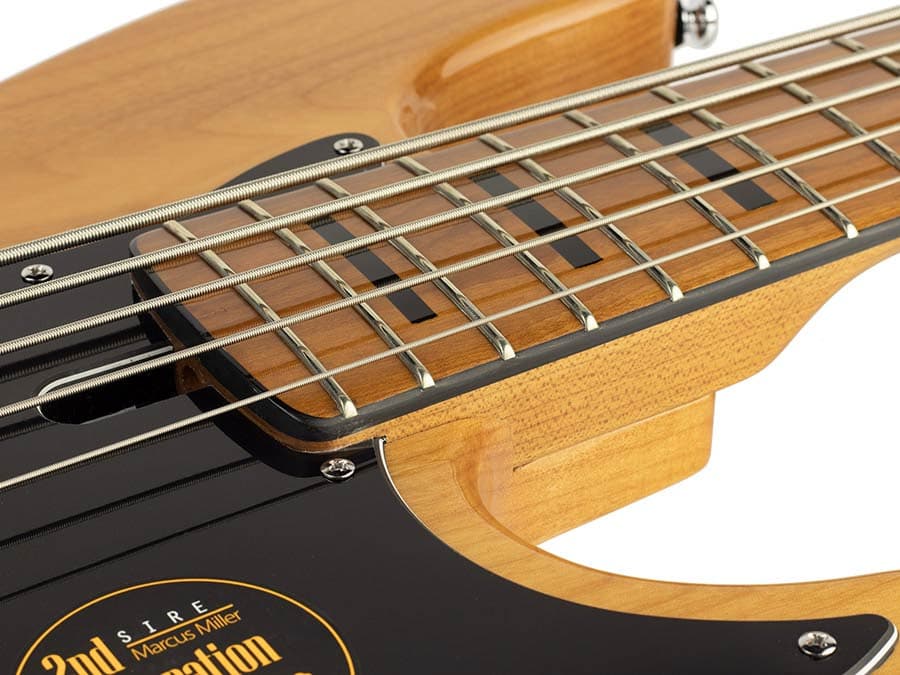

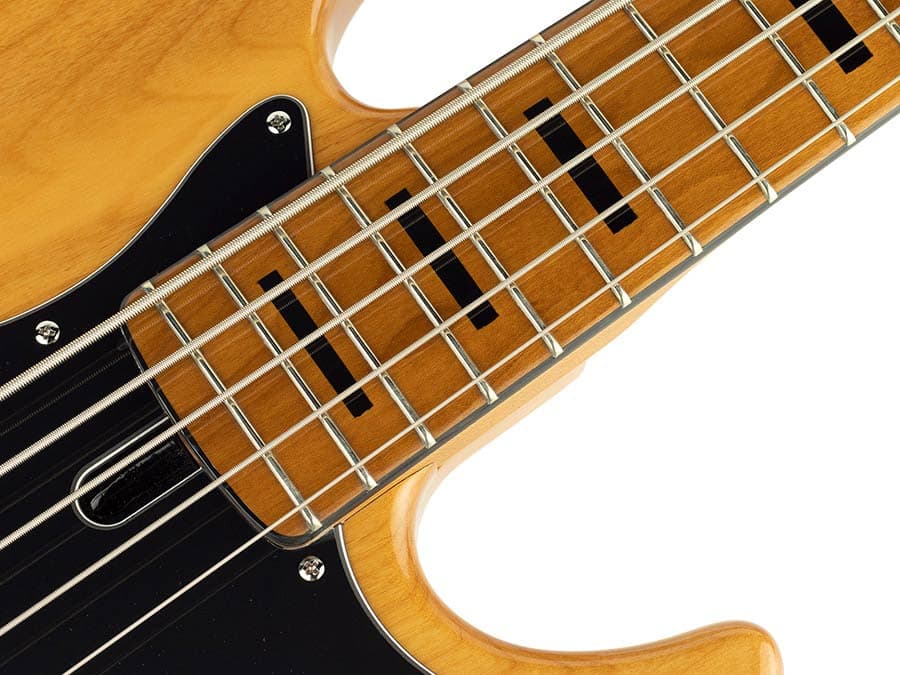

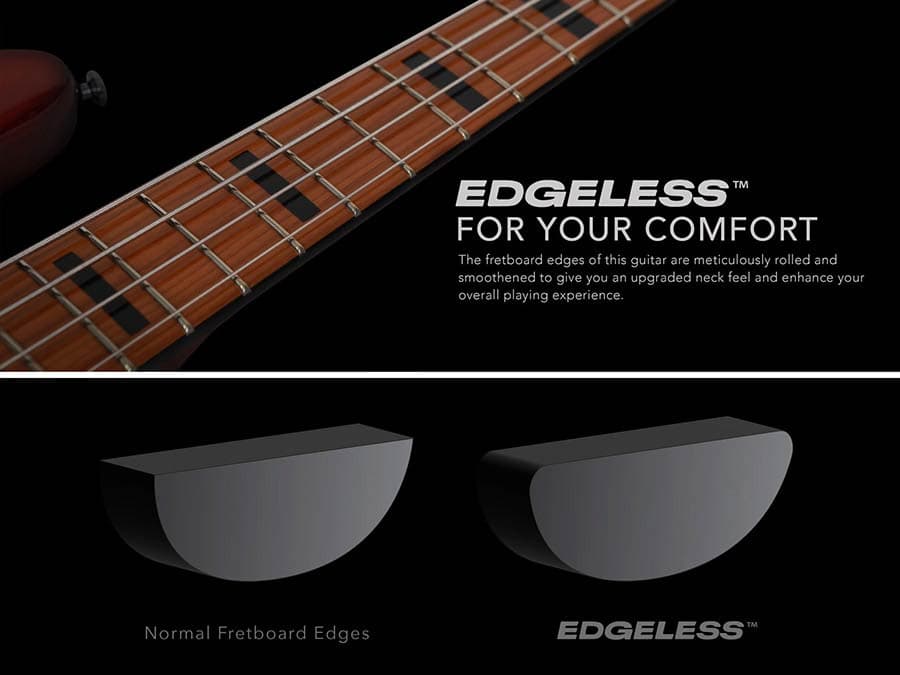

fingerboard material	roasted hard maple / rolled fretboard edges
fingerboard radius	9.5"
frets	2.4mm medium
string nut	5 string - bone nut 46mm width
binding	1 ply black
inlay	black square block
ELECTRONICS
pickups	Marcus vintage J-revolution set
preamp	passive volume and tone control

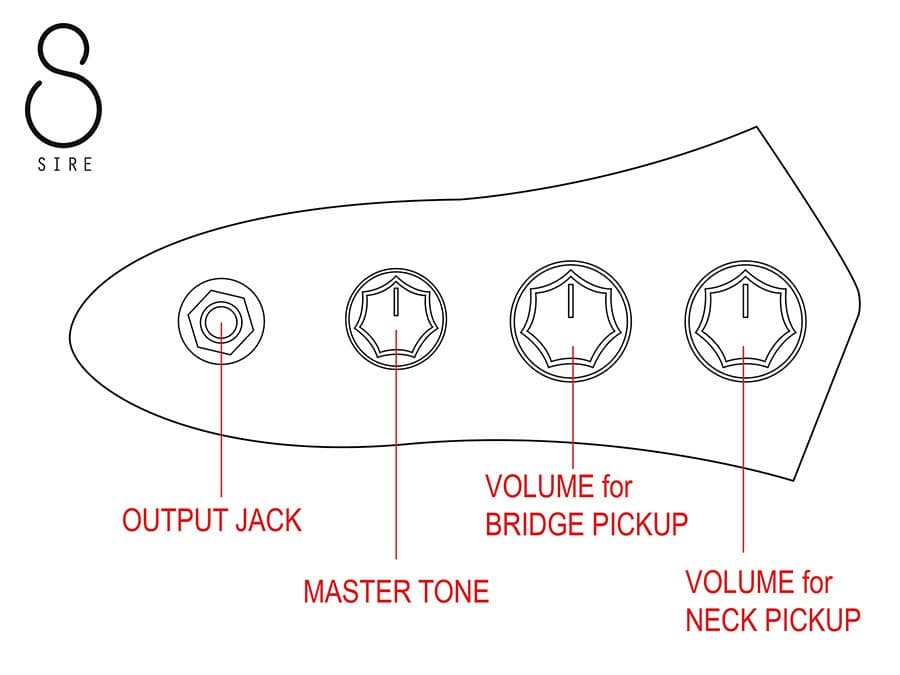

controls	volume (neck pu) volume (bridge pu) tone (master)
HARDWARE
knobs	plastic jazz type in black

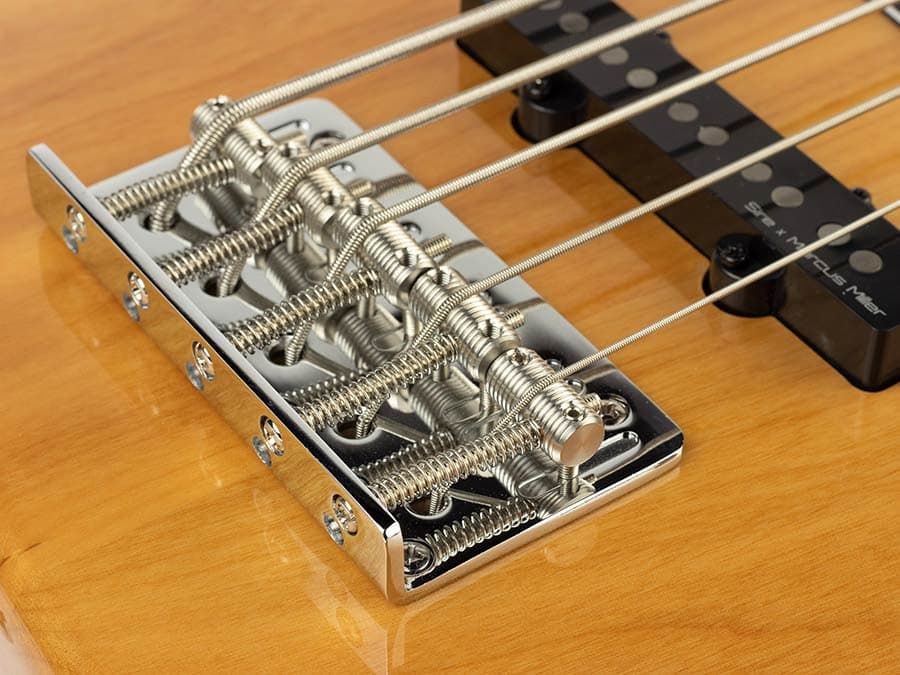

bridge	Marcus Miller vintage S
tuning gear	premium open gear
hardware finish	chrome
pickguard	3-ply black
