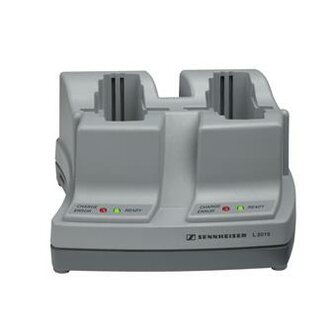

Sennheiser L 2015

The L 2015 quick-charging unit automatically recharges two Sennheiser BA 2015 rechargeable battery packs. The battery packs are either inserted directly into the charger or remain in their body pack transmitters/receivers of the 2015 System or the evolution wireless G2 300 and 500 Series.





• Input voltage: 12 V DC via hollow jack socket
• Input current: max. 750 mA
• Charging voltage: 2 x 2.9 V
• Charging current: 2 x 700 mA
• Charging principle: –?U method
• Deep discharge recovery charge
• Trickle charge
• Accupack temperature monitoring
• Over/undercharge detection
• Charging time limit (max. 6 h)
• BA 2015 battery type: 2 x 1.2 V 1500 mAh, NiMH
• Charging time: approx. 2.5 h with a totally discharged accupack and at room temperature, automatic security switch-off after
• 6 h at the latest
• Operating temperature:0–40 °C
• Dimensions: approx. 145 x 80 x 110 mm
• Weight: approx. 310 g
